In today’s industrial landscape, energy efficiency and precise motor control have become paramount for operational success. Variable Frequency Drives (VFDs) have emerged as essential technologies that not only optimize energy consumption but also enhance process control across diverse industrial applications. Among the leading manufacturers in this field, SEW-EURODRIVE stands out with its comprehensive portfolio of drive solutions that cater to various industrial needs. This comprehensive analysis examines three key VFD models from SEW-EURODRIVE’s extensive lineup: the MOVITRAC 31C, MOVITRAC MC07B, and MDX60A, exploring their technical specifications, applications, and the value they bring to modern industrial operations.
The evolution of industrial automation has fundamentally transformed how manufacturers approach motor control and energy management. SEW-EURODRIVE, with nearly a century of engineering excellence since 1931, has consistently positioned itself at the forefront of drive technology innovation. The company’s commitment to combining reliability, precision, and energy efficiency has made it a trusted partner for industries worldwide, from manufacturing and automotive to food processing and renewable energy sectors.

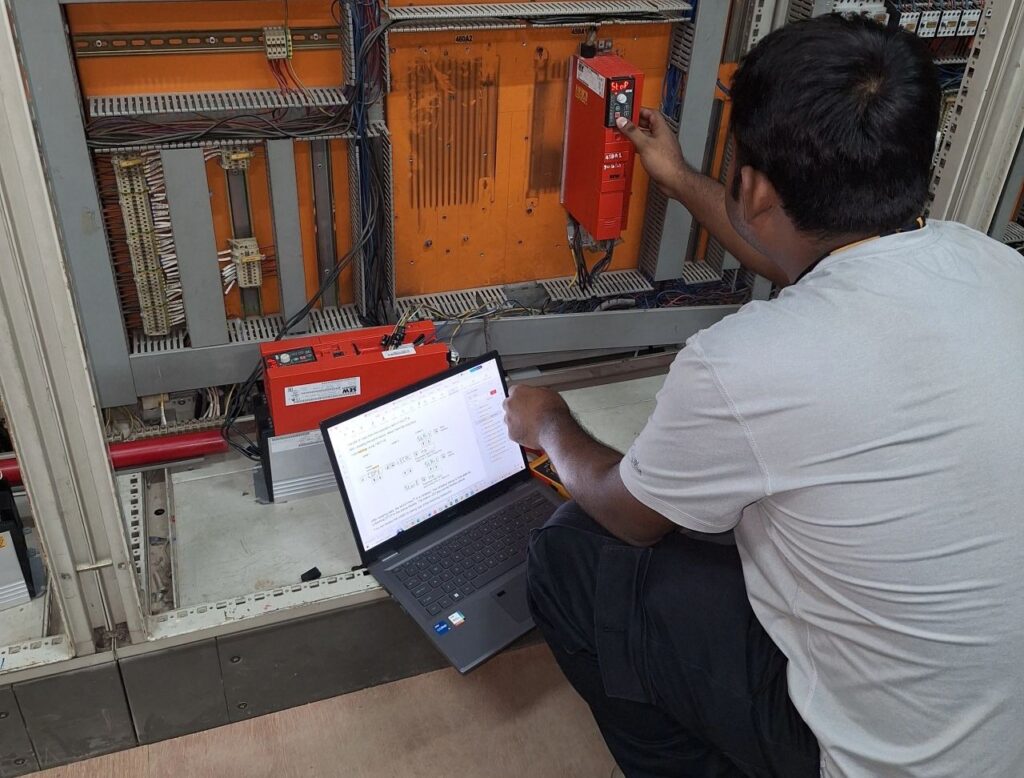

Understanding SEW-EURODRIVE’s VFD Portfolio
SEW-EURODRIVE’s variable frequency drive portfolio encompasses several distinct product families, each designed to address specific application requirements and performance criteria. The company’s approach to drive technology centers on providing comprehensive solutions that integrate seamlessly with their mechanical components, creating optimized drive systems that maximize efficiency and reliability.
The three models examined in this analysis represent different tiers of SEW-EURODRIVE’s offering. The MOVITRAC 31C serves as a robust, mid-range solution for industrial applications requiring reliable frequency control. The MOVITRAC MC07B represents the latest generation of compact, versatile drives designed for space-constrained applications. Finally, the MDX60A (part of the MOVIDRIVE series) exemplifies advanced drive technology with sophisticated control capabilities and extensive connectivity options.
MOVITRAC 31C: Industrial Reliability Redefined
Technical Specifications and Features
The MOVITRAC 31C frequency inverter represents SEW-EURODRIVE’s commitment to providing robust, industrial-grade drive solutions. This series spans an impressive power range from 0.55 to 55 kW for supply voltages of 3×230V and 3×380-500V, making it suitable for a wide variety of industrial applications.scribd+1
Key Technical Parameters:
- Power Range: 1.8 kVA to 5.1 kVA output-rated power
- Input Voltage: 3×380 VAC -10% to 3×500 VAC +10%
- Output Current: 2.5 AAC to 7.3 AAC at 400VAC
- Frequency Range: 50Hz to 60Hz ± 5%
- Enclosure Rating: IP65 for decentralized installations
- Dimensions: Compact form factor with modular sizing options
The MOVITRAC 31C incorporates advanced control algorithms that enable stepless, electronic speed control with minimal mains pollution. This is achieved through sophisticated power electronics that maintain low harmonic distortion while delivering precise motor control. The drive supports both CE and UL/cUL approvals, ensuring global compatibility and safety compliance.
Control Features and Capabilities:
The MOVITRAC 31C offers comprehensive control functionality through its integrated terminal system. The drive features six programmable digital inputs and two programmable digital outputs, providing flexibility for various control schemes. Additionally, it includes an analog setpoint input with integrated 10V DC voltage supply, enabling precise speed control through external potentiometers or control systems.
The drive’s parameter structure is designed for straightforward configuration, with factory settings that can be easily reactivated if needed. This feature proves particularly valuable during maintenance operations or when standardizing drive configurations across multiple installations.
Applications and Industry Use Cases
The MOVITRAC 31C finds extensive application in industries where reliable, mid-range drive performance is essential. Manufacturing operations benefit from its robust construction and consistent performance in controlling conveyor systems, pumps, and fans. The drive’s ability to handle variable load conditions makes it particularly suitable for applications where process demands fluctuate throughout operational cycles.
Materials handling systems represent another key application area, where the MOVITRAC 31C’s reliability and precise control capabilities enhance operational efficiency. The drive’s compact design and IP65 enclosure rating enable installation directly beside motors in challenging industrial environments.
In water treatment facilities, the MOVITRAC 31C provides efficient control for pumping systems, where energy savings and process reliability are critical. The drive’s ability to match motor speed to actual demand can result in significant energy reductions compared to traditional constant-speed operations.
MOVITRAC MC07B: Next-Generation Compact Excellence
Advanced Design Philosophy
The MOVITRAC MC07B represents SEW-EURODRIVE’s latest advancement in compact VFD technology. This drive embodies the principle that “unit modularity” and “smaller dimensions” are crucial criteria for modern drive selection. The MC07B achieves an optimal balance between functionality and physical footprint, making it ideal for applications where space constraints are paramount.
Technical Specifications:
The MC07B series covers a comprehensive power range with multiple voltage configurations:
- Single-phase 200-240V: 0.25kW to 2.2kW
- Three-phase 200-240V: 0.25kW to 30kW
- Three-phase 380-500V: 0.25kW to 75kW
Dimensional Efficiency:
The drive’s compact design is exemplified by its size classifications:
- Size 0XS: 54.5 x 185 x 163.5mm (0.25kW)
- Size 0S: 80 x 185 x 163.5mm (0.55-0.75kW)
- Size 0L: 80 x 273.5 x 163.5mm (1.1-1.5kW)
Enhanced Control Features
Integrated EMC Filter:
One of the MC07B’s standout features is its integrated EMC filter, available up to 11kW power ratings. This eliminates the need for external EMC components in many installations, reducing both system complexity and installation costs.
Flexible I/O Configuration:
- Digital Inputs: 6 programmable inputs
- Digital Outputs: 3 programmable outputs
- Relay Output: 1 programmable relay
- Analog Input: 1 configurable input
- Communication: RS-485 (Modbus RTU) standard
Advanced Motor Control:
The MC07B incorporates sophisticated motor control algorithms, including:
- U/f Characteristic Control: For simple applications requiring basic speed control
- VFC (Voltage Flux Control): Vector control providing field-oriented control without encoder feedback
- Sensorless Vector Control: Delivering up to 200:1 speed range with excellent regulation
Energy Efficiency and Performance Optimization
The MC07B’s design prioritizes energy efficiency through multiple technological approaches. The drive’s ability to provide sensorless vector control enables significant energy savings in variable torque applications such as fans and pumps. Studies have shown that VFDs can reduce energy consumption by 20-80% in appropriate applications, with some installations achieving even higher savings.
Overload Capabilities:
- Continuous Operation: 125% of nominal current
- Short-term Overload: 150% for up to 60 seconds
- Breakaway Torque: Up to 200% of nominal torque
These overload capabilities ensure reliable operation even under demanding conditions while maintaining energy efficiency during normal operations.
Industry 4.0 Integration
The MC07B incorporates features that align with Industry 4.0 principles, including standardized communication interfaces and diagnostic capabilities. The integrated Modbus RTU communication enables seamless integration with modern automation systems, facilitating data exchange and remote monitoring capabilities.
MDX60A/MDX61B: MOVIDRIVE Excellence
Premium Drive Technology
The MDX60A, part of SEW-EURODRIVE’s MOVIDRIVE series, represents the pinnacle of the company’s drive technology. This series has evolved into the MDX60B/61B generation, incorporating enhanced functions and improved performance characteristics. The MOVIDRIVE family is designed for applications requiring sophisticated control capabilities and maximum flexibility.
Technical Specifications:
The MOVIDRIVE series offers extensive power ranges:
- MDX60B Series: 0.55kW to 75kW (not option-capable)
- MDX61B Series: 0.55kW to 315kW (option-capable)
- Supply Voltages: 3×380-500V and 3×200-240V configurations
Advanced Control Modes:
- VFC (Voltage Flux Control): Field-oriented control for asynchronous motors
- CFC (Current Flux Control): High-performance control with encoder feedback
- Servo Mode: For synchronous servo motors with resolver feedback.
Integrated Intelligence: IPOSplus®
A distinguishing feature of the MOVIDRIVE series is the integrated IPOSplus® positioning and sequence control system. This sophisticated control platform enables direct motion control at the drive level, reducing the computational load on higher-level controllers and enabling modular automation concepts.
IPOSplus® Capabilities:
- Direct Positioning Control: Absolute and relative positioning functions
- Sequence Programming: Complex motion sequences with branching and loops
- Real-time Performance: Precise timing control for critical applications
- Application Modules: Pre-configured programs for common applications.
The IPOSplus® system supports both graphical programming interfaces and high-level language programming, accommodating different user preferences and application complexity levels.
Enhanced Connectivity and Communication
The MOVIDRIVE series incorporates comprehensive communication capabilities essential for modern industrial networks:
Standard Communication Interfaces:
- System Bus (SBus): Standard networking between MOVIDRIVE units
- MOVILINK® Protocol: Uniform communication structure across all interfaces
- Fieldbus Compatibility: PROFIBUS-DP, INTERBUS, CAN, CANopen, DeviceNet
Advanced Diagnostic Features:
- Fault Memory: Five-location fault memory with complete operating data
- Elapsed-time Counters: Tracking of operational hours and enabled time
- SCOPE Visualization: Real-time data recording and analysis capabilities
Safety and Compliance
The MOVIDRIVE series incorporates comprehensive safety features meeting current industrial safety standards:
- Integrated Safe Stop (STO): Safety function according to PL d per EN ISO 13849-1
- Safe Torque Off: Prevents unexpected motor rotation during maintenance
- Safety Option Cards: Expandable safety functionality for complex applications
Comparative Analysis: Selecting the Right Drive
Performance Positioning
Each of the three VFD models serves distinct market segments and application requirements:
MOVITRAC 31C positions itself as the reliable workhorse for standard industrial applications. Its robust construction and straightforward operation make it ideal for installations where simplicity and reliability are paramount. The drive excels in applications with stable operating conditions and standard performance requirements.
MOVITRAC MC07B targets applications where space efficiency and modern features are crucial. Its compact design and integrated EMC filtering make it perfect for machine-level installations where cabinet space is limited. The drive’s advanced control features provide performance capabilities that exceed its compact footprint.
MDX60A/61B addresses high-performance applications requiring sophisticated control capabilities. The integrated IPOSplus® system and extensive communication options make it suitable for complex automation systems where precision and flexibility are essential.
Energy Efficiency Considerations
All three drives contribute significantly to industrial energy efficiency, though through different mechanisms:
Variable Speed Control: All models provide fundamental energy savings through speed matching to load requirements. This is particularly effective in centrifugal load applications where power consumption varies with the cube of speed.
Advanced Control Algorithms: The sophisticated control methods, particularly in the MOVIDRIVE series, minimize motor losses and optimize efficiency across the entire operating range.
System Integration: The drives’ ability to integrate with broader automation systems enables system-level optimization that compounds individual drive efficiency gains.
Installation and Maintenance Best Practices
Installation Considerations
Proper installation is crucial for maximizing VFD performance and longevity. Key considerations include
Environmental Protection: Ensuring appropriate enclosure ratings for the installation environment, with IP20 for control cabinet installations and IP65 for direct motor mounting applications.
EMC Compliance: Proper cable shielding and grounding practices to minimize electromagnetic interference, particularly important with the higher switching frequencies used in modern drives.
Thermal Management: Adequate ventilation and temperature control, considering that drive efficiency typically decreases at elevated temperatures.
Maintenance Requirements
Regular maintenance extends drive life and maintains optimal performance:
Visual Inspections: Regular examination for signs of overheating, loose connections, or component degradation.
Cleaning Procedures: Removal of dust and debris that can impede cooling and cause component failures.
Connection Tightening: Thermal cycling can loosen electrical connections, requiring periodic checking and retightening.
Performance Monitoring: Utilizing built-in diagnostic capabilities to track drive performance and identify potential issues before failure occurs.
Predictive Maintenance Opportunities
Modern VFDs, particularly the MOVIDRIVE series, incorporate extensive diagnostic capabilities that enable predictive maintenance strategies. These systems can monitor critical parameters and provide early warning of potential failures, allowing for scheduled maintenance that minimizes production interruptions.
Industry 4.0 and Future Connectivity
Digital Integration
SEW-EURODRIVE’s commitment to Industry 4.0 principles is evident across their VFD portfolio. The company’s “Lean Smart Factory” concept integrates advanced drive technology with comprehensive digital connectivity.
Smart Factory Integration: Modern VFDs serve as intelligent nodes in networked production systems, providing real-time operational data and accepting dynamic control commands from higher-level systems.
Data Analytics: The extensive diagnostic and monitoring capabilities of contemporary drives generate valuable data streams that contribute to overall equipment effectiveness (OEE) optimization.
Remote Monitoring: Advanced communication capabilities enable remote monitoring and diagnostics, reducing maintenance costs and improving system uptime.
Emerging Technologies
The future of VFD technology incorporates several emerging trends:
Artificial Intelligence Integration: Advanced algorithms that optimize drive performance based on learned operational patterns.
Enhanced Cybersecurity: As drives become more connected, cybersecurity features become increasingly important for protecting industrial systems.
Energy Storage Integration: VFDs are increasingly designed to work with energy storage systems, enabling regenerative energy capture and grid-interactive operation.
Economic Benefits and Return on Investment
Energy Cost Reduction
The primary economic benefit of VFD implementation is typically energy cost reduction. Industrial studies consistently demonstrate significant energy savings:
- Pump Applications: 20-80% energy reduction depending on system characteristics
- Fan Applications: 30-60% energy savings through speed control
- Process Applications: Variable savings based on load profiles and duty cycles
Maintenance Cost Benefits
VFDs contribute to reduced maintenance costs through several mechanisms:
Soft Starting: Reduces mechanical stress on driven equipment, extending component life.
Precise Control: Minimizes process variations that can cause premature wear.
Diagnostic Capabilities: Early fault detection prevents catastrophic failures and reduces repair costs.
Productivity Improvements
Beyond direct cost savings, VFDs contribute to improved productivity through:
Process Optimization: Precise control enables optimal process conditions.
Reduced Downtime: Predictive maintenance capabilities minimize unplanned outages.
Flexibility: Easy reconfiguration for different operating requirements without hardware changes.
Environmental Impact and Sustainability
Carbon Footprint Reduction
The energy efficiency improvements provided by VFDs directly translate to reduced carbon emissions. With industrial motors consuming approximately 45% of global electricity, the potential environmental impact of VFD deployment is substantial.
Sustainable Manufacturing
VFDs contribute to sustainable manufacturing practices through:
Resource Efficiency: Optimized energy use reduces resource consumption per unit of production.
Waste Reduction: Precise process control minimizes material waste and rework.
Equipment Longevity: Extended equipment life reduces replacement frequency and associated environmental impacts.
Future Developments and Trends
Technological Evolution
The VFD industry continues to evolve with emerging technologies:
Wide Bandgap Semiconductors: Silicon carbide (SiC) and gallium nitride (GaN) devices promise higher efficiency and power density.
Advanced Control Algorithms: Machine learning and AI integration for optimized performance.
Enhanced Connectivity: 5G and edge computing integration for real-time optimization.
Market Drivers
Several factors continue to drive VFD adoption:
Energy Regulations: Increasingly stringent energy efficiency requirements.
Digital Transformation: Industry 4.0 initiatives require intelligent drive systems.
Sustainability Goals: Corporate environmental commitments driving energy efficiency investments.
SEW-EURODRIVE’s portfolio of variable frequency drives, exemplified by the MOVITRAC 31C, MOVITRAC MC07B, and MDX60A/61B models, represents a comprehensive approach to industrial motor control that addresses the diverse needs of modern manufacturing and process industries. Each model brings distinct capabilities and advantages, enabling users to select solutions that precisely match their application requirements while maximizing energy efficiency and operational reliability.
The MOVITRAC 31C provides robust, reliable performance for standard industrial applications where proven technology and straightforward operation are valued. Its comprehensive power range and industrial-grade construction make it an excellent choice for traditional manufacturing environments requiring dependable motor control.
The MOVITRAC MC07B exemplifies modern drive technology with its compact design, integrated features, and advanced control capabilities. This model is particularly well-suited for applications where space efficiency and contemporary functionality are essential, representing the evolution of drive technology toward more integrated and intelligent solutions.
The MDX60A/61B MOVIDRIVE series delivers sophisticated control capabilities and extensive connectivity options for high-performance applications. The integrated IPOSplus® positioning system and comprehensive communication interfaces make this series ideal for complex automation systems requiring maximum flexibility and precision.
As industrial operations continue to evolve toward greater digitalization and sustainability, the role of variable frequency drives becomes increasingly critical. The energy efficiency improvements, process optimization capabilities, and intelligent connectivity features provided by these drives position them as essential components in the journey toward more sustainable and efficient industrial operations.
The future success of industrial operations will increasingly depend on the intelligent integration of drive technology with broader automation and information systems. SEW-EURODRIVE’s comprehensive approach to drive technology, combining mechanical expertise with advanced electronic control and software integration, positions the company and its customers well for this evolving landscape. By carefully selecting and implementing appropriate VFD solutions, industrial operators can achieve significant improvements in energy efficiency, process control, and overall operational effectiveness while contributing to broader sustainability objectives.
The investment in quality VFD technology represents not just an immediate operational improvement but a strategic positioning for future industrial competitiveness in an increasingly energy-conscious and digitally connected world. As the examples and case studies throughout various industries demonstrate, the benefits of properly implemented VFD solutions extend far beyond simple energy savings to encompass improved process control, reduced maintenance costs, enhanced equipment reliability, and greater operational flexibility – all essential elements for sustainable industrial success in the modern economy.
